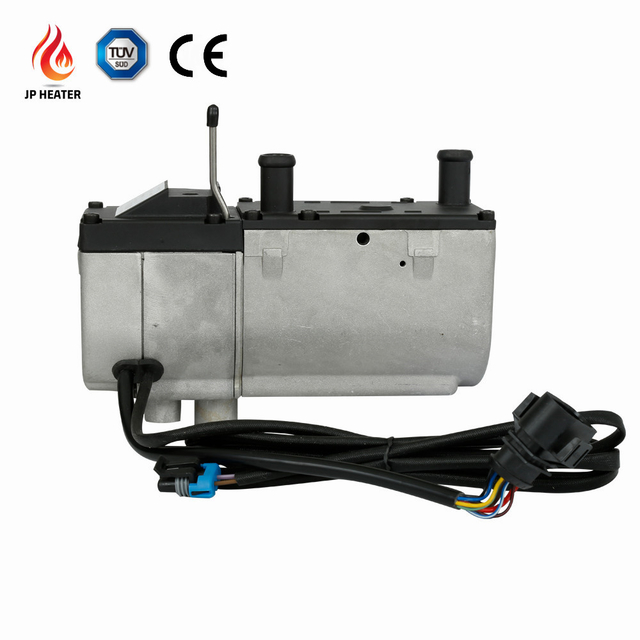

5KW 12V Diesel Coolant Liquid Heater LCD Switch 5000m Working Altitude
-
{{ detail_data.displayed_price.unit_prefix }} {{
detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
-
$ 425
- {{item.name}}* {{item.values[0].value}}
-
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days.
See details
Total Price:
$ 425
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
5KW liquid heater
You May Also Like
5KW 12V Diesel Coolant Liquid Heater LCD Switch
5000m Working Altitude
Product name | 5KW 12V Diesel Coolant Liquid Heater LCD Switch 5000m Working Altitude |
Brand | JP |
Heat Power | 5000(W) |
Fuel | Diesel |
Rated voltage | 12 |
Fuel Consumption | 0.21~0.69(l/h) |
Working temperature | -40℃~+20℃ |
Dimensions | 223*86*176(mm) |
Mobile phone control(Optional) | No limitation |
Remote control(Optional) | Without obstacles≤800m |

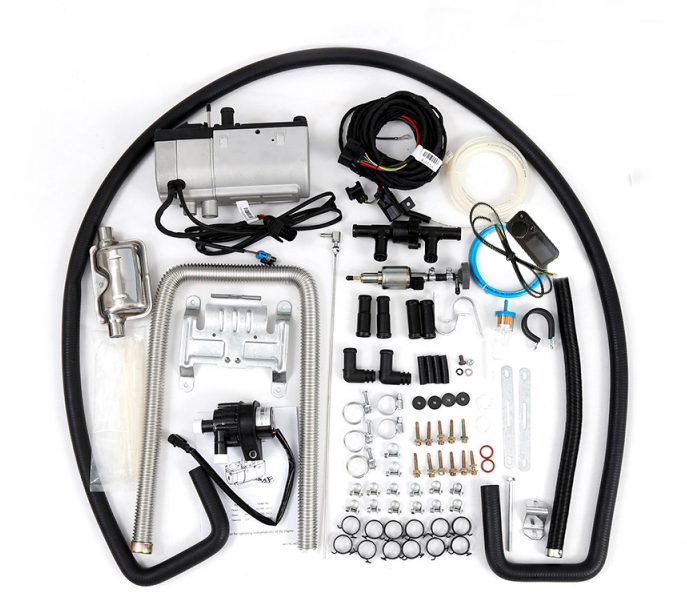

No. | Name | Specifications | Amount |
1 | Parking heater | 5KW | 1 |
2 | Timer |
| 1 |
3 | Fuel pump | YB-Ⅰ-12V(24V) | 1 |
4 | Muffler | XYQ-Ⅰ | 1 |
5 | Wiring harness |
| 1 |
6 | Water pump | 12V (24V) | 1 |
7 | Heater bracket |
| 1 |
8 | Rubber cushion |
| 4 |
9 | Muffler bracket |
| 1 |
10 | Air inlet pipe | Φ20.5/Φ24 L=900 | 1 |
11 | Exhaust pipe | Φ24/Φ29.5 L=1000 | 1 |
12 | Positive wire of power supply |
| 1 |
13 | Fuse base | With cover | 1 |
14 | Fuse | QY169-5A | 1 |
15 | Fuse | 12V/20A(24V/15A) | 1 |
16 | Fuse | QY169-25A | 1 |
17 | Water pipe | Φ17/Φ27 L=2600 | 1 |
18 | Clip | 16-25 | 1 |
19 | Spring clip | Φ24×Φ27 | 10 |
20 | Oil pump clip | Φ32 | 1 |
21 | Oil pipe clip | 8-10 (9-11) | 12 |
22 | Exhaust pipe clip | Φ24-28 | 3 |
23 | Air inlet pipe fixing clip | Φ24 t=0.5 | 2 |
24 | Exhaust pipe fixing clip | Φ27 t=0.8 | 2 |
25 | Fuel pipe | GasolineΦ1.5×Φ4(DieselΦ2×Φ5) | 1 |
26 | Fuel pipe connector | Φ3.5/Φ9.5(Φ4.1/Φ10.5) | 6 |
27 | water pipe connector | Φ18 L=55 | 2 |
28 | Special water pipe connector | PPA +33 Φ20×Φ18 L=60 | 2 |
29 | Relay | 4141(only for 12V) | 1 |
30 | Filter | RYL-Ⅰ(only for diesel) | 1 |
31 | Bolt | M6×10 | 1 |
| 32 | Self drilling tapping screw | ST5.5×25 | 6 |
| 33 | Self drilling tapping screw | ST5.5×30 | 5 |
| 34 | Self tapping screw | ST3×20 | 1 |
| 35 | Self tapping screw | ST4×16 | 3 |
| 36 | Spring washer | Φ6 | 2 |
| 37 | Washer | Φ6/Φ12 | 2 |
| 38 | Nut | M6 | 1 |
| 39 | Fuel suction pipe | XYG-Ⅰ 3×400 | 1 |
| 40 | Plug | DJ7041A-2.8-21 | 1 |
| 41 | Nylon cable ties | 4×150 | 1 |
| 42 | Nylon cable ties | 4×200 | 1 |
| 43 | Instruction manual | 1 | |
| 44 | Reducing T | Φ6-Φ10/Φ10 | 1 |
| 45 | Oil pipe clip | 12-14 | 2 |
| 46 | Non-return valve | D18 | 1 |
| 47 | Transition elbow | 2 | |
| 48 | Fixing gear | 2 | |
| 49 | O-ring | 14.8×2.62 | 2 |
| 50 | Bolt | M6×95 | 4 |
